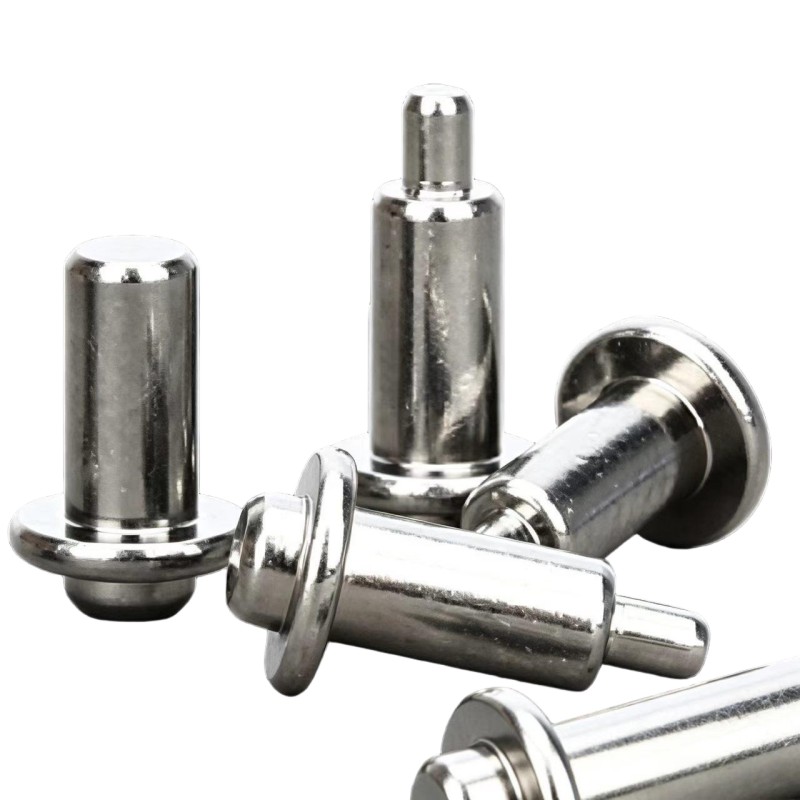

Flanged Step Locating Pin

Integrally cold forged steel pin with flanged stop base and stepped shaft. The slim tip enables smooth insertion. Electroplated surface delivers rust resistance with tight dimensional tolerance and burr-free finish. Suitable for furniture shelf supports and miniature machinery positioning. Custom sizes available via drawings or samples.

Our flanged step locating pins are manufactured by integrated cold forging, which ensures solid structural strength and consistent dimensional accuracy. The integrated flange serves as a reliable limiting shoulder to control assembly depth, while the tapered thin tip lowers friction during installation and boosts working efficiency.

All pins are processed with electroplating treatment to achieve outstanding anti-corrosion and anti-rust performance, fitting long-term indoor use in cabinetry, office furniture and small automation equipment. The smooth machined surface eliminates sharp burrs to avoid scratching matching workpieces.

These pins are widely applied to shelf brackets, equipment positioning assemblies and various hardware connection structures. We keep abundant standard specifications ready for quick delivery. Custom manufacturing service is provided; customers can adjust flange diameter, shaft thickness and overall length according to design drawings or physical samples. Every batch will go through strict dimensional inspection before delivery to meet precision assembly requirements.
